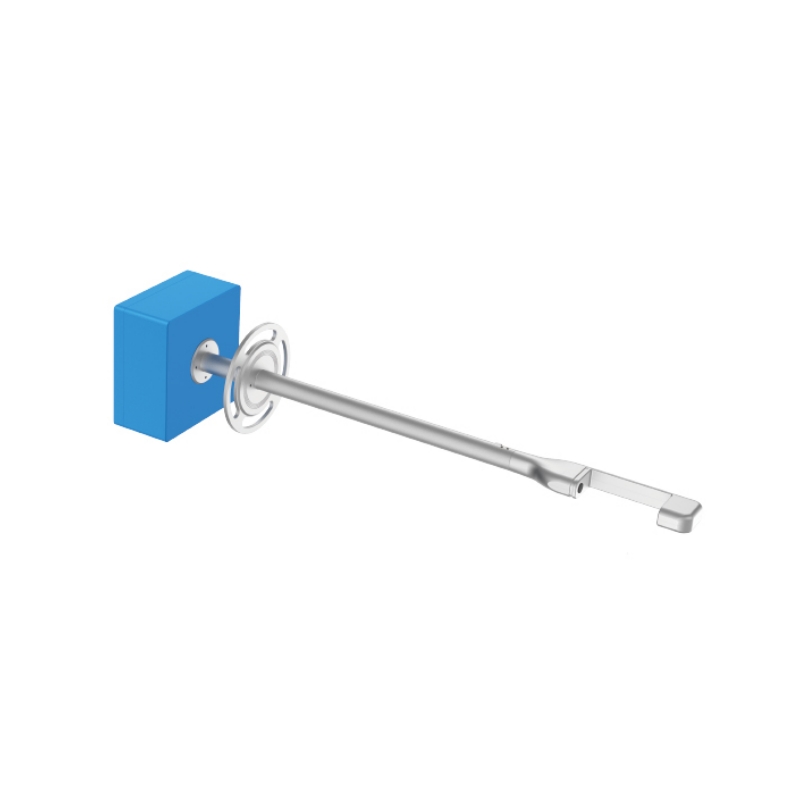

Single-End Ultrasonic Flow Meter

Product Overview
The Single-End Ultrasonic Flow Meter is a high-precision gas flow velocity measurement instrument. Based on ultrasonic principles, this device uses non-contact measurement technology to effectively address common measurement challenges such as unstable flow fields, low flow velocities, and uneven flow distribution. It is particularly suitable for real-time monitoring of flue gas emissions in harsh environments such as high temperatures, high humidity, heavy dust, and viscous impurities, ensuring continuous and stable operation. Featuring a single-end mounting design, it reduces maintenance requirements while providing high measurement accuracy. This instrument can operate independently or integrate with CEMS systems, making it widely applicable in municipal and industrial sectors.

Key Features

• Low Flow Velocity Measurement: Minimum measurable flow velocity as low as 0.1m/s, suitable for low flow gas measurement.
• Ultrasonic Principle: Uses ultrasonic technology for line-averaged flow velocity measurements with high accuracy (≤±2% F.S.).
• Strong Anti-Interference: Autocorrelation detection technology effectively overcomes field noise interference, ensuring stable monitoring.
• Single-End Mounting: Simple installation, replacing old equipment without the need for additional holes, saving installation time and costs.
• Wide Diameter Compatibility: Supports installation in pipes with diameters of ≥0.5m, suitable for a variety of pipe sizes.
• Comprehensive Gas Flow Measurement: Capable of measuring gas temperature, pressure, and flow velocity simultaneously, providing complete data.
• Corrosion-Resistant Design: Parts in contact with gases are made of corrosion-resistant materials, suitable for acidic and moist flue gases.
• Low Maintenance Requirements: Unaffected by gas component variations, requiring minimal maintenance, reducing long-term operating costs.
• Strong System Integration: Supports embedded data processing with calibration, configuration, query, and diagnostic functions. Rich interfaces make it easy to integrate with other systems.

Applications

• Municipal and Industrial Measurement: Widely used in municipal wastewater treatment, exhaust gas emission monitoring, and various industrial gas flow velocity measurements.
• Flue Gas Emission Monitoring: Particularly suitable for measuring high-temperature, high-humidity, and dust-laden gas flow velocities in flue gas ducts, ensuring compliance with emission standards.
• Energy Industry: Extensively used for pipeline flow monitoring in natural gas, coal gas, and other energy industries.
• Environmental Protection: Used in environmental monitoring systems to provide real-time and accurate flow velocity data, ensuring compliance with environmental regulations.
• Chemical and Power Industries: Ideal for gas flow velocity monitoring in harsh environments such as chemical plants and power stations, ensuring production safety and emission compliance.
