Product Overview

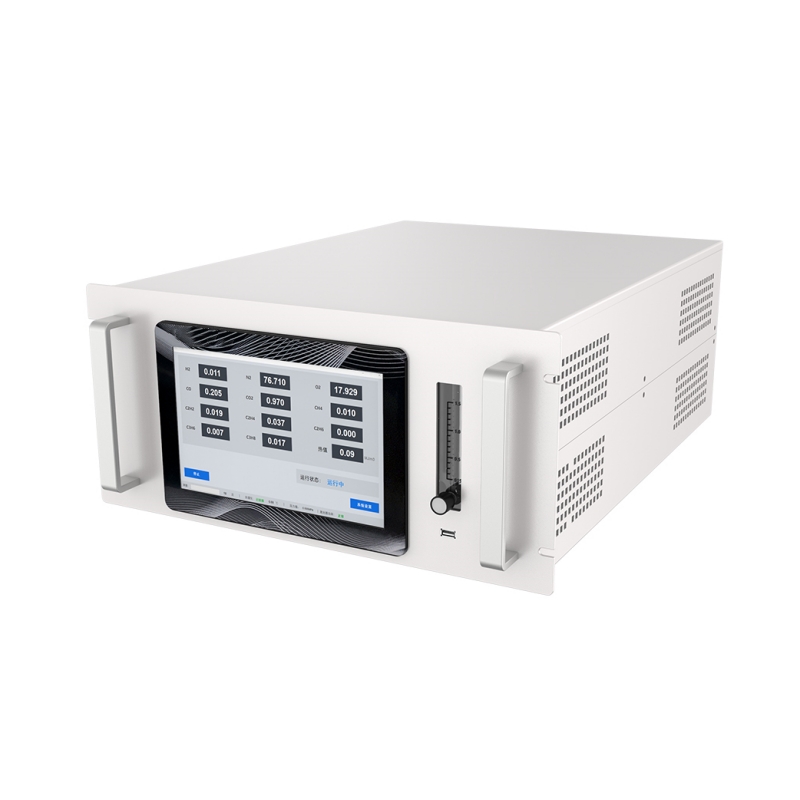

The Laser Raman Spectroscopy Gas Analyzer is a new generation gas analyzer based on laser Raman scattering principles. By optimizing the optical path and structure, the instrument has a compact, portable design. It enhances, collects, and processes the characteristic Raman spectra of gases, enabling real-time qualitative and quantitative analysis of multiple gas components with a response time in seconds, eliminating the need for lengthy waits. The analyzer can measure gases including H₂, N₂, O₂, CO, CO₂, CH₄, and H₂S.
Key Features
- Real-Time Online Monitoring: Provides comprehensive, continuous monitoring of gases throughout industrial processes.
- Multi-Component Detection: Capable of measuring multiple gases such as H₂, N₂, O₂, CO, CO₂, CH₄, H₂S, and more.
- High Interference Resistance: Uses Raman gas fingerprint spectrum technology to minimize cross-interference among gases.
- Wide Measurement Range: Supports gas concentration measurements across a full 0-100% range.
- Smart User Interface: Features a full touchscreen display with data visualization, supporting external PC keyboards for ease of use.
- Low Maintenance Cost: Requires no carrier gases or consumables, ensuring low long-term operational costs.
- Fast Response: Responds in less than 30 seconds, suitable for conditions needing quick feedback.
- Integrated Monitoring: Supports real-time, multi-point cyclic detection, meeting the needs of complex industrial environments.
Applications
- Coal Chemical Industry: Ideal for monitoring gases like CO, CO₂, H₂, N₂, O₂, and CH₄ in coal gasifiers, synthetic ammonia, and urea production.
- Steel and Metallurgy: Monitors CO, CO₂, H₂, and CH₄ levels in steel production processes, ensuring operational safety.
- Oil and Gas: Extensively used in gas and oil extraction for analyzing CH₄, CO, CO₂, H₂S, and other components.
- Environmental Monitoring: Used in environmental sectors to monitor exhaust gas emissions, enhancing environmental protection efforts.
- Power Industry: Suitable for online monitoring of gases like CO, CO₂, and H₂S in power generation facilities.
- Cement Production: Applicable in monitoring emissions during cement production, providing real-time data on CO, CO₂, and H₂O.
| Parameter | Description |
| Measured Components | H2, N2, O2, CO, CO2, CH4, C2H2, C2H4, C2H6, C3H6, C3H8, H2S, etc. |
| Measurement Range | 0-100% (Range can be selected based on site conditions) |
| Measurement Accuracy | ≤±1%F.S. |
| Repeatability | ≤1% |
| Response Time | ≤10s |
| Working Range | 10℃～35℃ |
| Power Supply | AC220V/50Hz, ＜70W |
| External Interface | USB, RS-232, Ethernet |
| Dimensions (L*W*H) | 605*483*220（mm） |
