Product Overview

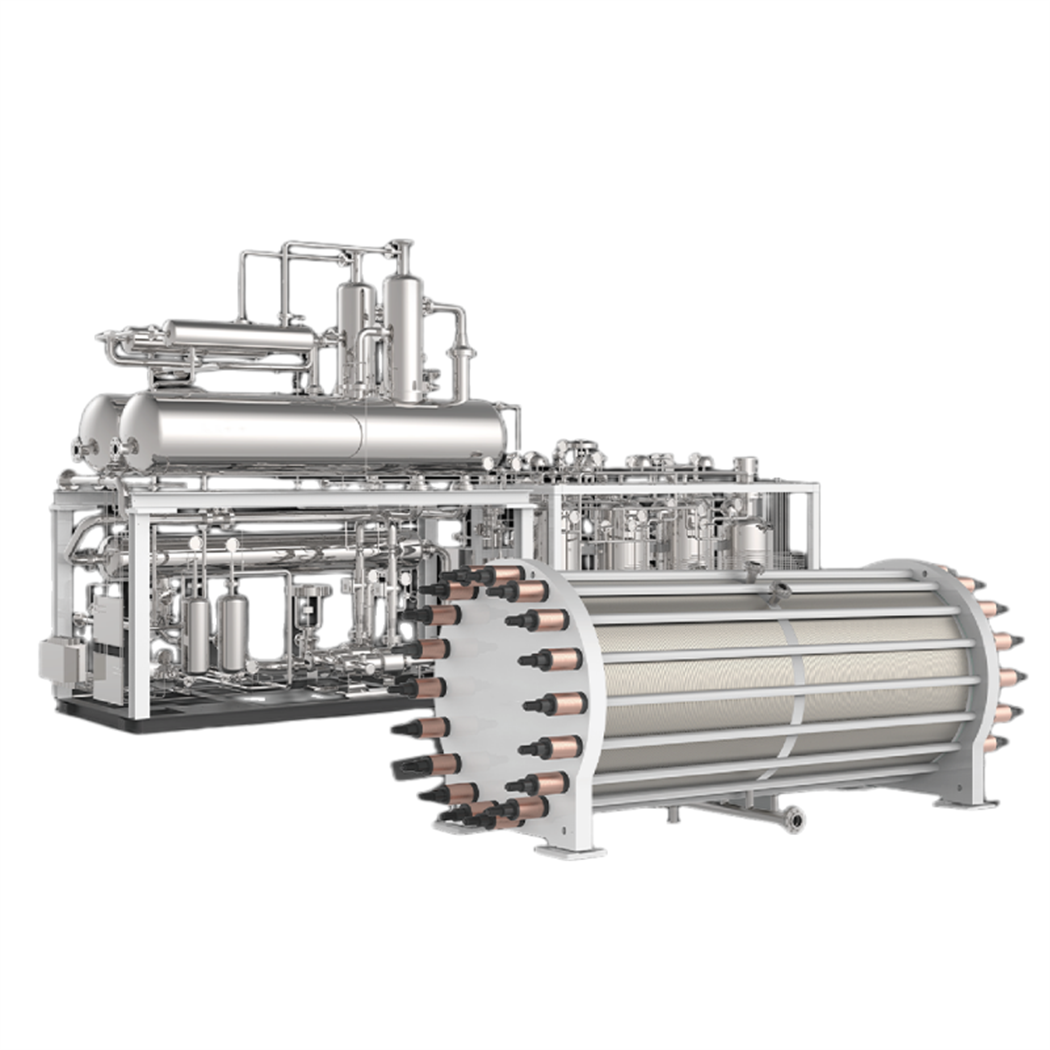

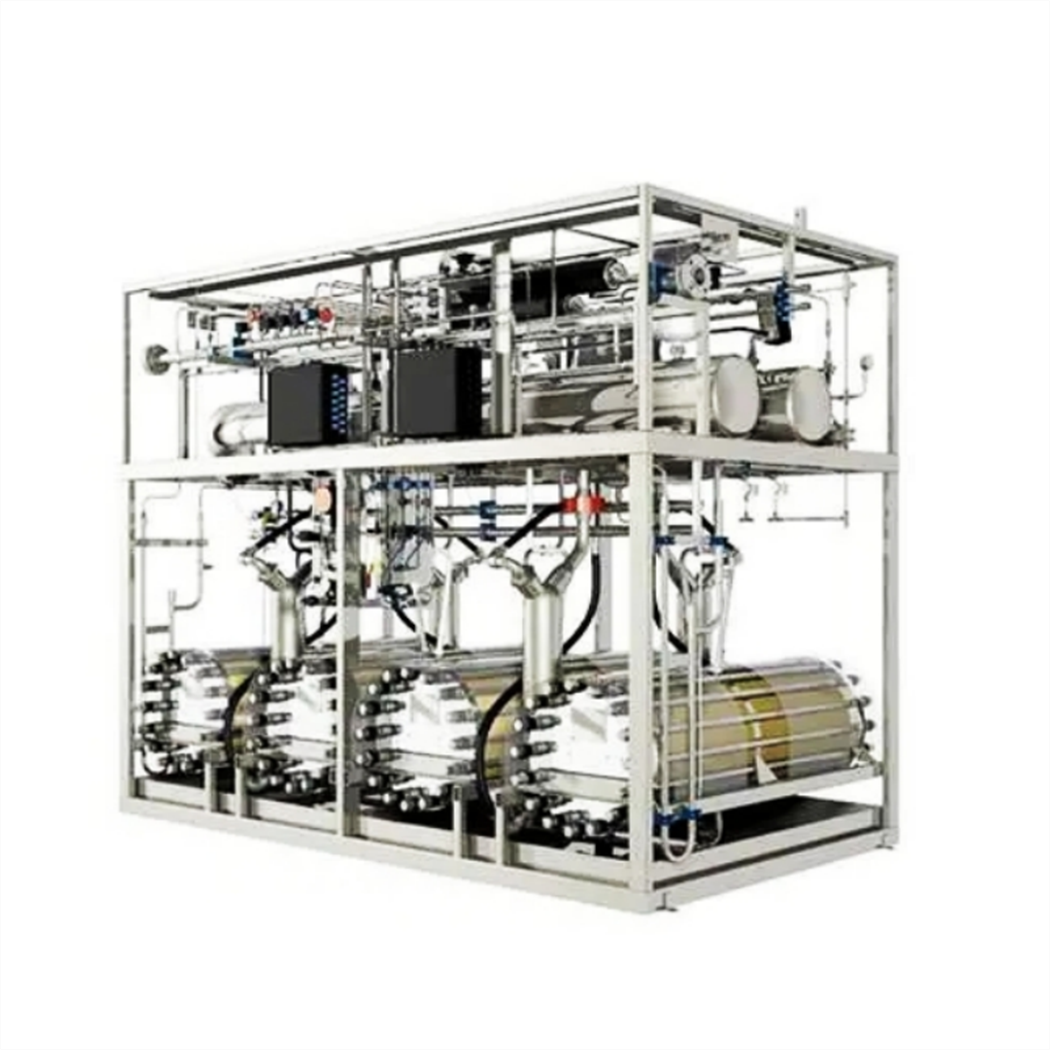

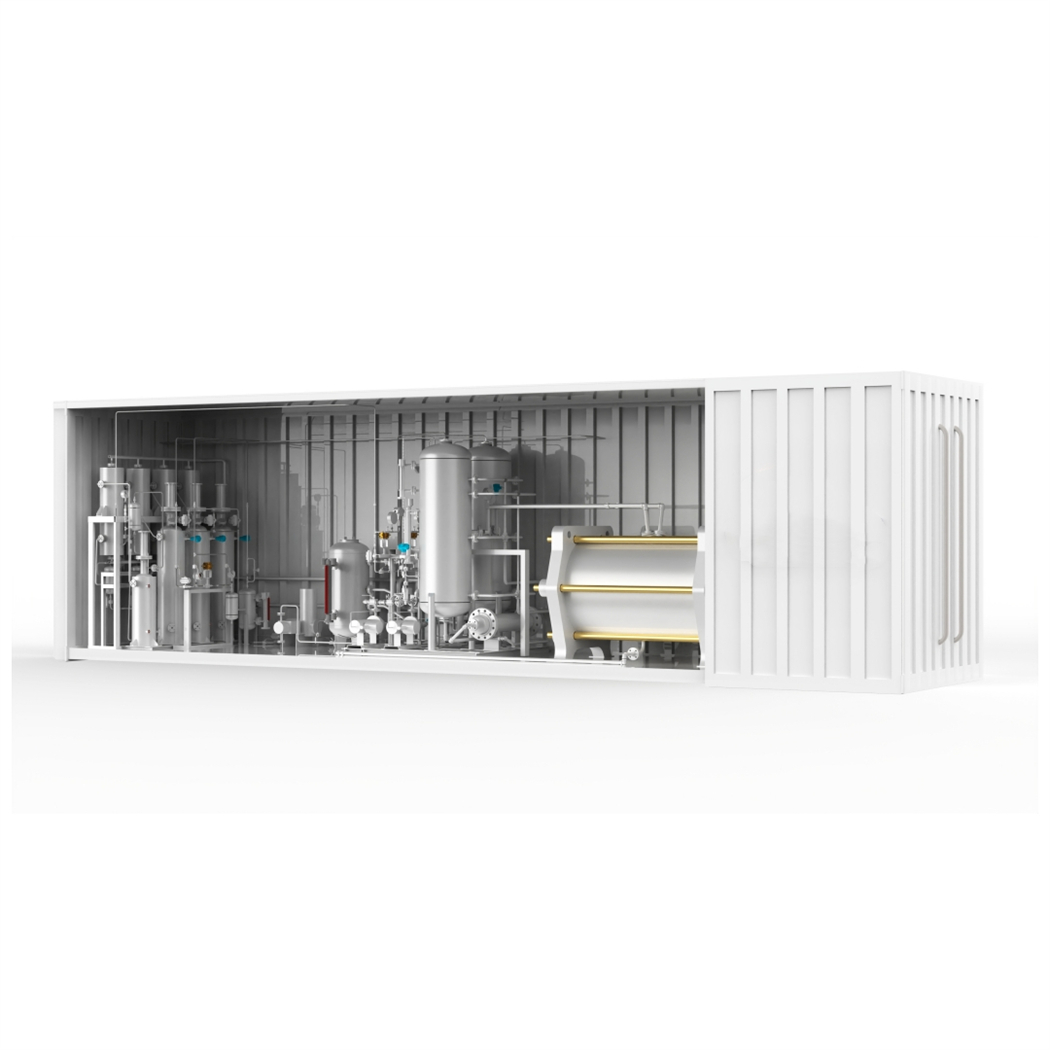

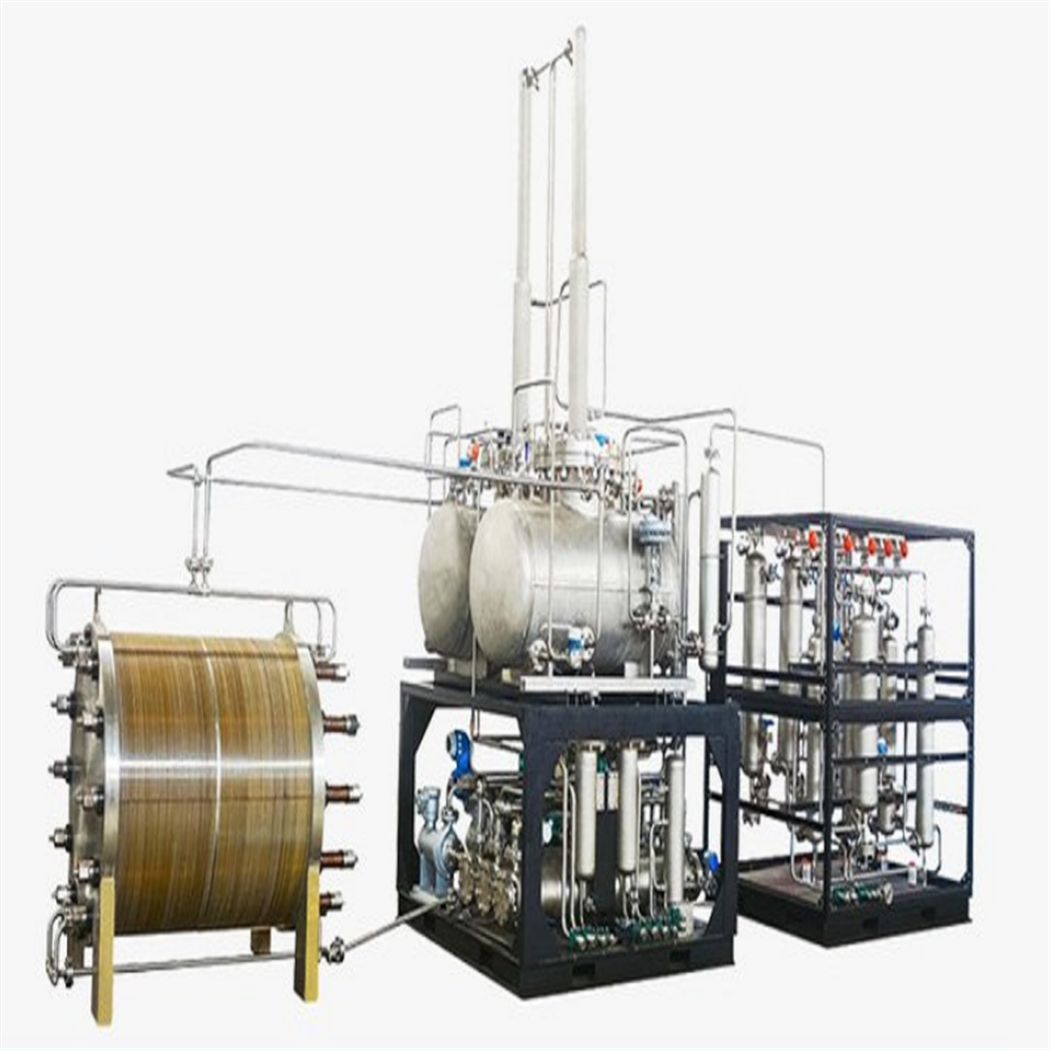

The Alkaline Water Electrolysis Hydrogen Production Equipment is a containerized hydrogen production system independently developed by our company. It integrates key modules such as the electrolyzer, gas-liquid separator, triple tower purification system, control panel, rectifier, and transformer into a standard 40-foot container. This compact equipment is easy to install and move, allowing users to deploy and produce hydrogen by simply connecting water, electricity, and gas. The system produces hydrogen with a purity of up to 99.999% and can achieve a hydrogen output of up to 100Nm³/h, making it widely applicable in gas production and storage industries.
Product Features
- Integrated Design: The electrolyzer, gas-liquid separator, purification system, and control system are all integrated into a 40-foot container, making transportation and installation easy, while reducing civil engineering costs.
- High-Purity Hydrogen: The hydrogen produced by the system has a purity of up to 99.999%, with a dew point as low as -70°C, meeting the stringent requirements for high-purity hydrogen.
- Flexible Deployment: The compact size of the equipment allows for easy deployment by simply connecting water, electricity, and gas, making it adaptable to various environments and simple to install.
- High Hydrogen Production Rate: The system can produce up to 100Nm³/h of hydrogen, supporting large-scale hydrogen production needs.
- Efficient and Stable: Using advanced alkaline water electrolysis technology, the system operates stably and reliably, making it suitable for long-term operation.
Application Areas
- Gas Companies: Suitable for gas production and supply, especially for locations with strict requirements for high-purity hydrogen.
- Industrial Hydrogen Production: Provides stable hydrogen supply for industries such as chemicals, electronics, and metal processing.
- Energy Storage and Applications: Can be used for hydrogen energy storage systems and green energy applications, supporting the future transition to sustainable energy.
- Research and Laboratories: Provides stable and high-purity hydrogen sources for research institutions and laboratories to meet experimental needs.
| Model | AWE-5 | AWE-10 | AWE-15 | AWE-16 | AWE-20 | AWE-24 | AWE-30 |
| Hydrogen Production (m³/h) | 5 | 10 | 15 | 16 | 20 | 24 | 30 |
| Oxygen Production (m³/h) | 2.5 | 5 | 7.5 | 8 | 10 | 12 | 15 |
| Hydrogen Purity Before Purification (V/V) | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% |
| Oxygen Purity Before Purification (V/V) | ≥99.2% | ≥99.2% | ≥99.2% | ≥99.2% | ≥99.2% | ≥99.2% | ≥99.2% |
| Hydrogen Purity After Purification (V/V) | ≥99.999% | ≥99.999% | ≥99.999% | ≥99.999% | ≥99.999% | ≥99.999% | ≥99.999% |
| Load Range (%) | 50%-100% | 50%-100% | 50%-100% | 50%-100% | 50%-100% | 50%-100% | 50%-100% |
| Operating Pressure (MPa) | 1.5~3.2 | 1.5~3.2 | 1.5~3.2 | 1.5~2.0 | 1.5~2.0 | 1.5~2.0 | 1.5~2.0 |
| Operating Temperature (°C) | 95±5 | 95±5 | 95±5 | 95±5 | 95±5 | 95±5 | 54±2 |
| DC Power Consumption (kW·h/m³H₂) | ≤4.5 | ≤4.5 | ≤4.5 | ≤4.5 | ≤4.5 | ≤4.5 | ≤4.5 |
| Hydrogen Moisture (g/m³) | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 |
| Hydrogen Alkaline Content (mg/m³) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| Alkaline Solution Concentration | 30% KOH | 30% KOH | 30% KOH | 30% KOH | 30% KOH | 30% KOH | 30% KOH |
| Model | AWE-40 | AWE-50 | AWE-60 | AWE-65 | AWE-80 | AWE-100 |
| Hydrogen Production (m³/h) | 40 | 50 | 60 | 65 | 80 | 100 |
| Oxygen Production (m³/h) | 2O | 25 | 30 | 32.5 | 40 | 50 |
| Hydrogen Purity Before Purification (V/V) | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% |
| Oxygen Purity Before Purification (V/V) | ≥99.2% | ≥99.2% | ≥99.2% | ≥99.2% | ≥99.2% | ≥99.2% |
| Hydrogen Purity After Purification (V/V) | ≥99.999% | ≥99.999% | ≥99.999% | ≥99.999% | ≥99.999% | ≥99.999% |
| Load Range (%) | 50%-100% | 50%-100% | 50%-100% | 50%-100% | 50%-100% | 50%-100% |
| Operating Pressure (MPa) | 1.5~2.0 | 1.5~2.0 | 1.5~2.0 | 1.5~2.0 | 1.5~2.0 | 1.5~2.0 |
| Operating Temperature (°C) | 95±5 | 95±5 | 95±5 | 95±5 | 95±5 | 95±5 |
| DC Power Consumption (kW·h/m³H₂) | ≤4.5 | ≤4.5 | ≤4.5 | ≤4.5 | ≤4.5 | ≤4.5 |
| Hydrogen Moisture (g/m³) | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 |
| Hydrogen Alkaline Content (mg/m³) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| Alkaline Solution Concentration | 30% KOH | 30% KOH | 30% KOH | 30% KOH | 30% KOH | 30% KOH |
